GD10 tables are produced in K.D. (knock-down) form to enable it to be easily stored, transported and reconfigured on site without damage to its constituent parts.
The standard tops, end frames and rails are manufactured from engineered hardwood that are made-up from finger-jointed staves. This provides the ‘block board’ appearance. Each wooden component is cut from those panels, laminated using Polyurethane adhesive and then machined to detail. End frames incorporate traditional mortise and tenon joints for strength, whilst the skirt rails bordering the underside of the worksurfaces are mitred in the corners to improve the tables’ aesthetics. All wooden components are finished with three coats of ‘Tung Oil’ – a natural, sustainable air drying oil produced from seeds that provides an even, deep transparent coating that hardens upon exposure to air and is easily maintained.
The skirt rails and support battens pre-fitted to the worksurface are attached using ‘hi-lo construction’ screws, providing a strong, flush fix. All other elements are attached using steel, metric Allen-key headed machine screws that locate into course threaded screw-in inserts, providing a substantial metal-to-metal fix that maintains their hold even after multiple assembly / dis-assembly operations.
End and centre frames are also connected to the top panels using 6mm thick Mild Steel connector plates, used to spread the load. These are precision laser cut and have a durable epoxy powder coated finish.

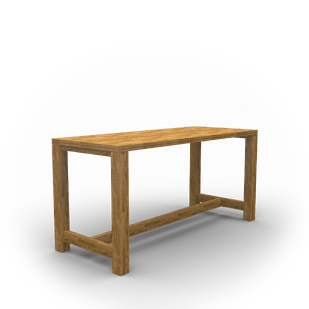

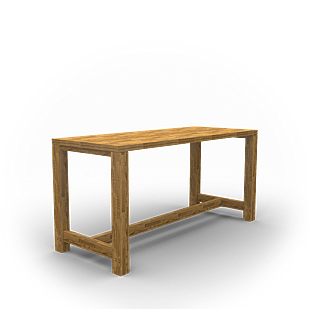

GD10C1 1600mm wide x 900mm deep x 1071mm high poseur table
GD10C2 1800mm wide x 900mm deep x 1071mm high poseur table
GD10C3 2000mm wide x 900mm deep x 1071mm high poseur table
GD10C4 2200mm wide x 900mm high x 1071mm high poseur table
GD10C5 2400mm wide x 900mm deep x 1071mm high poseur table
